| Name | Hydraulic Piling Rig |
|---|---|
| Model | RCQ-10W |
| Piling hole depth | 10m |
| Traveling speed | 40km/h |

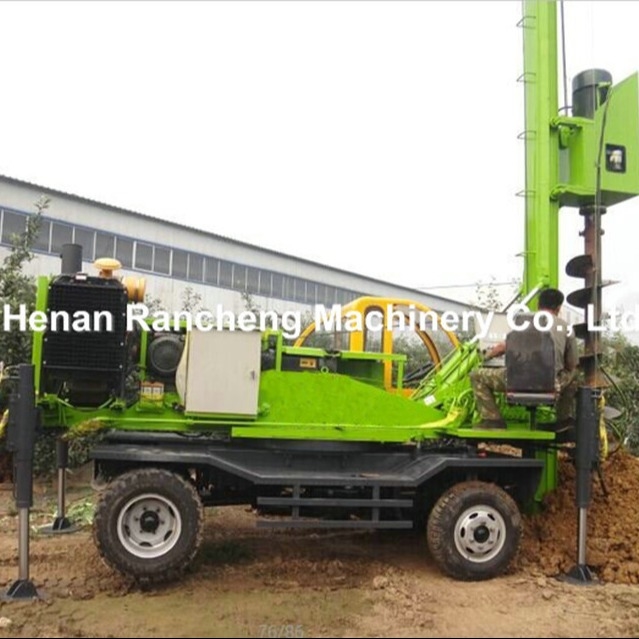

RCQ-10W is a small hydraulic wheeled pile foundation drilling rig with a drilling depth of 11 meters. The rig is equipped with a variety of drilling tools and can drill pile holes with diameters from 100 to 800 mm. The rig has high production efficiency and can be quickly transported between construction sites. It is flexible, convenient and efficient. It is designed for high-speed railway construction projects across the country.
| Vehicle Parameters | |||
|---|---|---|---|
| Dimensions | mm | 7300×2100×2850 | |
| Minimum gap | mm | 230 | |
| Wheel track | mm | Front 1860, back 1920 | |
| Wheelbase | mm | 2650 | |
| Upright height | mm | 7500 | |
| Telescopic trajectory | mm | 800 | |
| Total weight | kg | 6500 | |
| Tire size | - | Front 700-16, back 750-16 | |
| Traveling speed | km/h | 40 | |
| Gradeability | ° | 25 | |
| Diesel Engine | |||
| Model | - | Quanchai 485 | |
| Power | kw | 34 | |
| Rotary speed | r/min | 2200 | |
| Generator Set | |||
| Power | kw | 40-50 | |
| Hydraulic System | |||
| Wedge pressure | mpa | 16-20 | |
| Outrigger pressure | mpa | 16-20 | |
| Max pressure | mpa | 20 | |
| Main pump flow | l/min | 32 | |
| Working Range | |||
| Piling hole diameter | mm | 100-800 | |
| Piling hole depth | m | 6-10 | |
| Drill pipe speed | r/min | 40-65 | |
| Drill pull force | KN | 100 | |
| Rotation angle | ° | 360 | |
