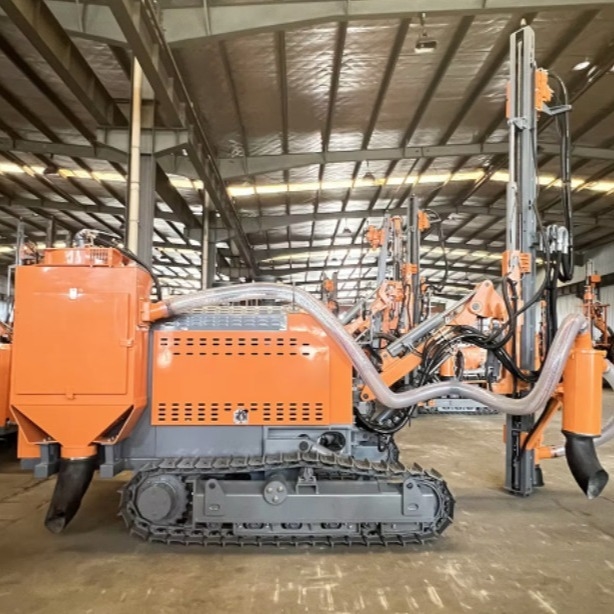

The RCZ452T compact hydraulic drill rig's integrated design improves productivity, eliminating the need for a traction air compressor, reducing air delivery losses and improving long-haul fleet management. Compared to split-body drill rigs, the diesel engine consumes 30% less energy and reduces maintenance costs by 50%. Key components from world-renowned brands are integrated. A single diesel engine drives both the rotary screw compressor and the hydraulic system, increasing power output.
| item | RCZ452T hydraulic integrated DTH drilling rig |
| Applicable Industries | Energy & Mining, Construction works, Drilling |
| Weight | 9220KG |
| Dimension(L*W*H) | 9,000*2,360*3,000 mm |
| Core Components | Motor, Engine, Gearbox |
| Drilling Diameter | 90-138mm |
| Drilling Depth | 21M |
| Type | Rotary Drilling Rig |
| Power Type | Diesel |
| Power | Yuchai / 191 kW |
| Rotation Torque ( Max.) | 2200 N.m |
| Rotation speed | 0-115r/min |
| Air compressor FAD | 17m3/min |
| Air compressor pressure | 18bar |
| DTH hammer(Standard) | 4"(inch) |
| Drilling rod | 76*3,000 mm |
| Diesel tank volume | 300 L |
| FAD | 15 m³/min |
| Engine | China III |
| Engine Model | YCA07260T-301 |
This hydraulic drilling rig is widely used in energy and mining, construction engineering, open pit blasting holes, quarry blasting hole drilling, highway blasting hole drilling, water conservancy, power station construction, railway and other construction drilling.
