Multifunctional 800m Deep Hydraulic Crawler Core Drilling Rig
Machine Introduction
The RCF800C is a popular deep-well drilling rig! This rig can drill up to 800 meters and is equipped with a 153-kW Cummins engine. It's incredibly powerful and efficient, making it a top choice for customers in water-scarce areas. Furthermore, this rig can drill various layers, especially soil and frozen ground.
This water well drill can also be used with an air compressor, achieving excellent results! It can even reach a penetration rate of 30 meters per hour in rock and soil. It's currently on sale, so interested customers are welcome to inquire.
Specification
| Model | RC800C |
| Drilling way | Both mud pump drilling and air DTH drilling |
| Geology drilled | All kind |
| Drill system and operation | Hydraulic |
| Diesel engine | 154KW Cummins |
| Max hole depth | 800m |
| Hole diameter |
140-500mm |
| Air consumption |
17-42m³/min |
| Length of drilling pipe | 1m/2m/3m/6m |
| Diameter of drilling pipe |
102/108/114mm |
| Total Weight | 13ton |
| Dimension (L * W * H) |
6300×2300×2650mm |
Applications
1. The chassis of the drilling rig adopts a professional traveling motor with a gearbox, which has a longer service life;
2. The gearbox is integrally formed, double motors, stronger power, larger torque, more durable, and low maintenance cost;
3. It adopts professional excavator chassis, which is sturdy and durable, bears heavy load, wide chain plate, and has little damage to hard road surface;
4. big power ensure the deep drilling

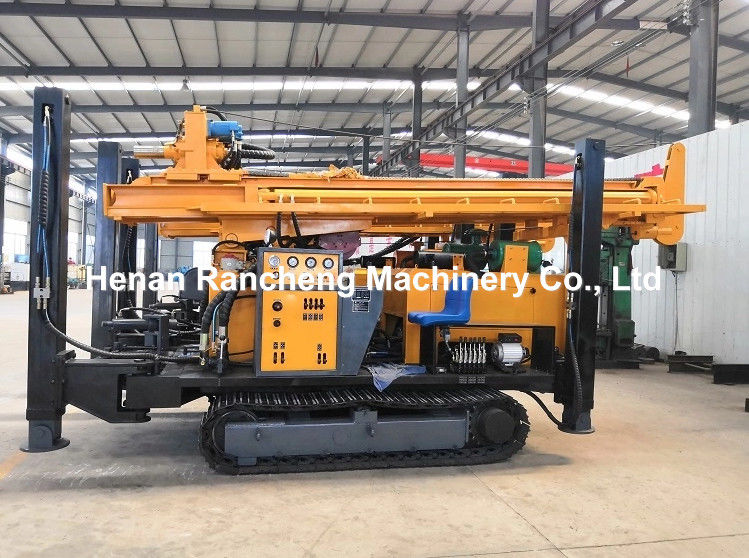

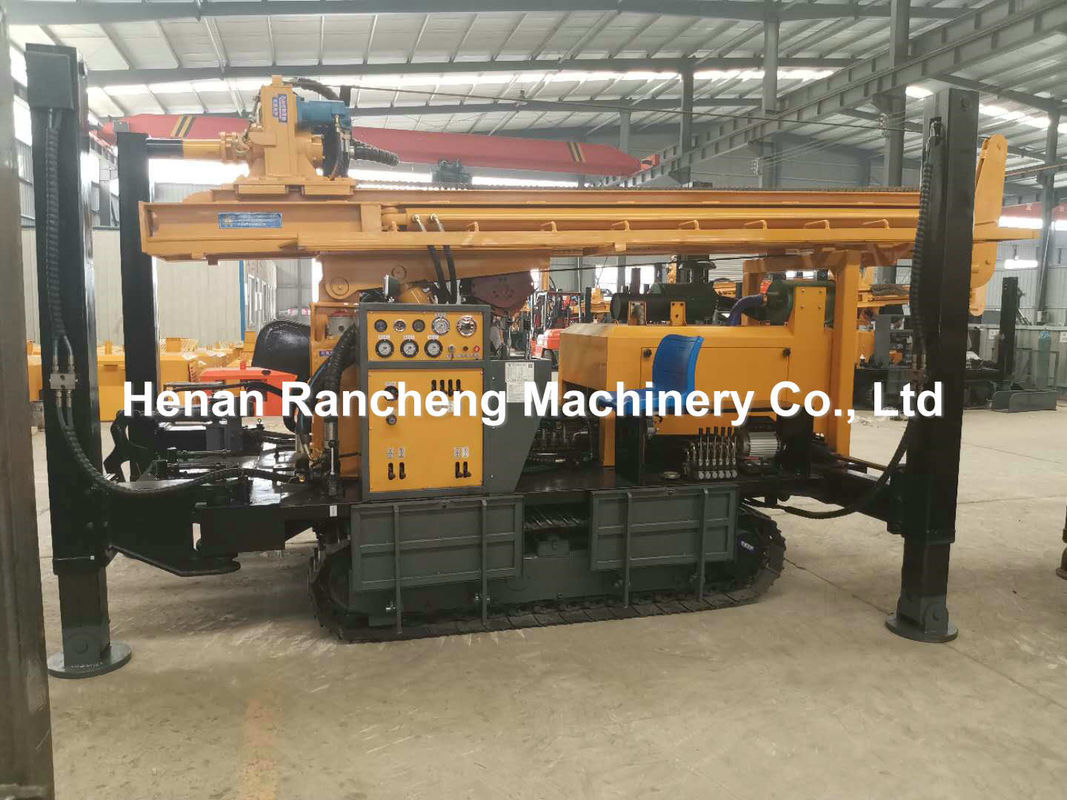

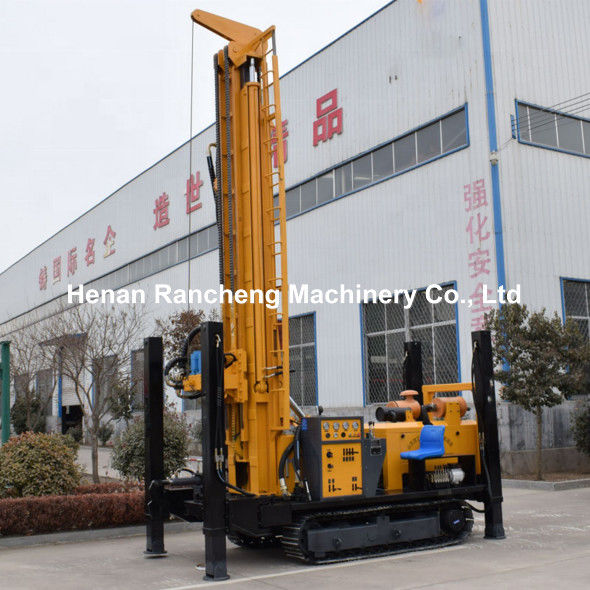

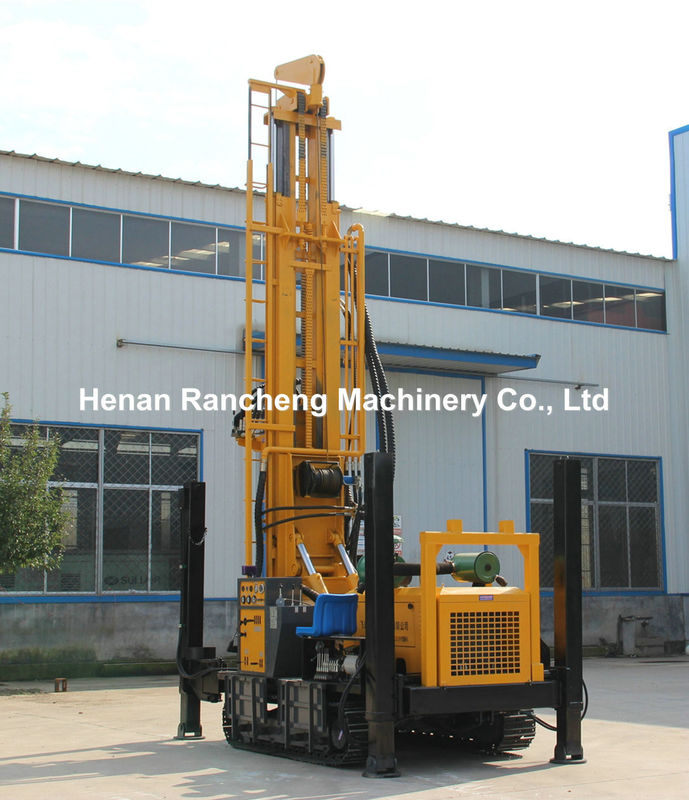

Machine Pictures
