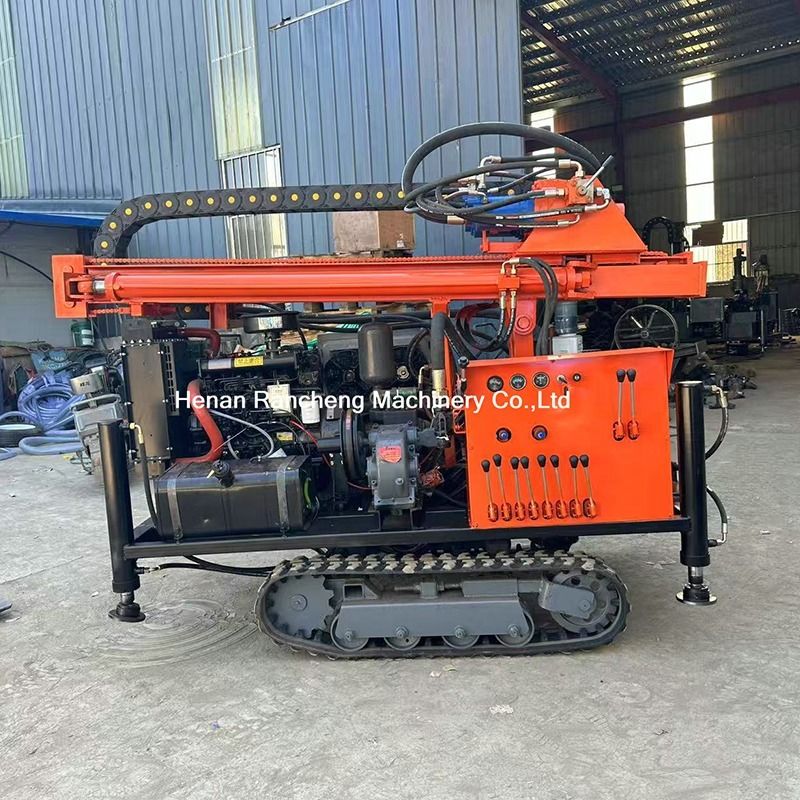

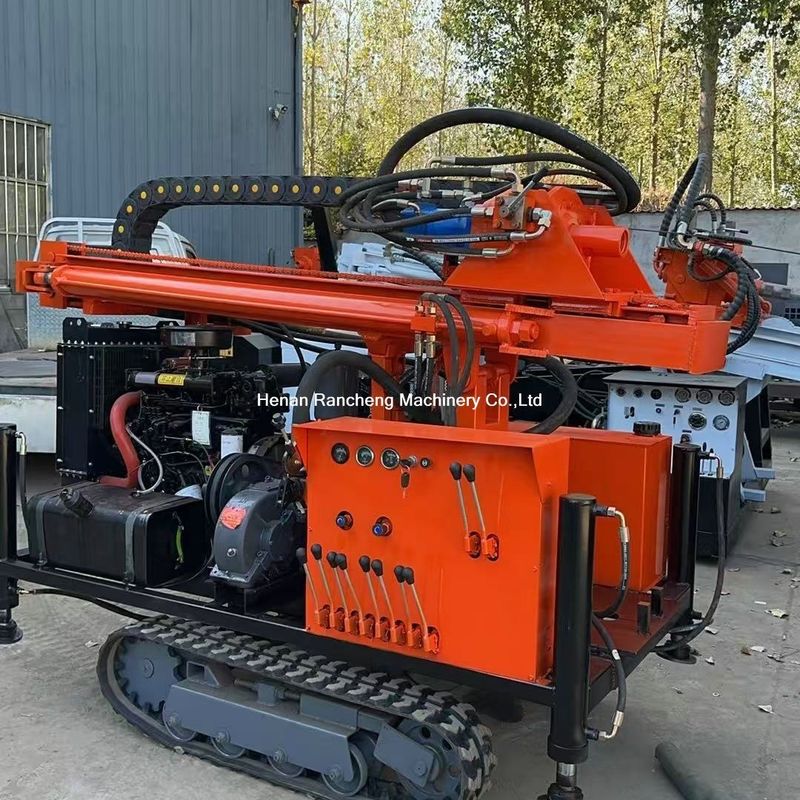

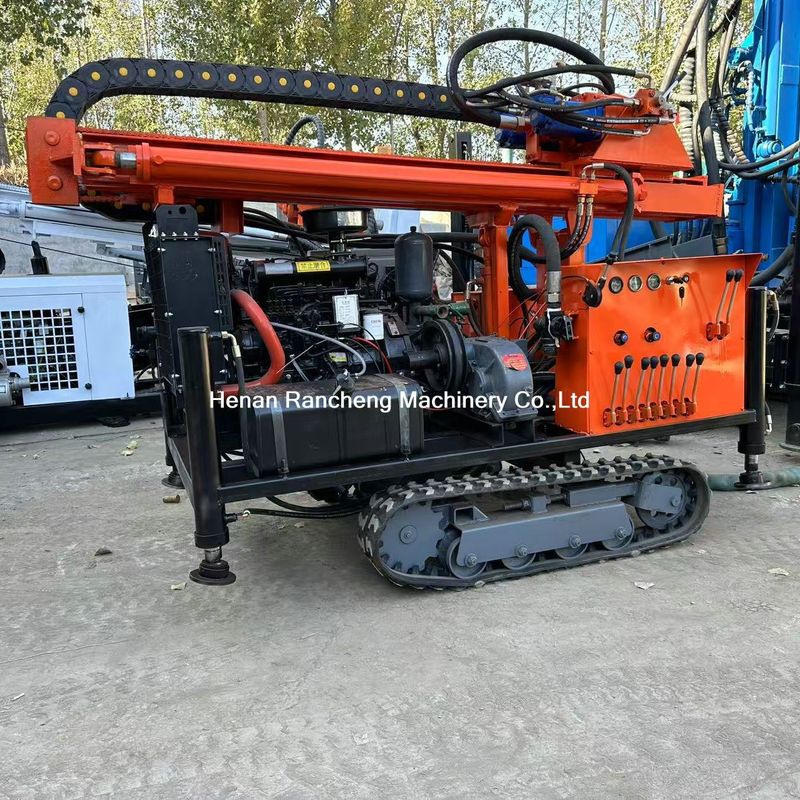

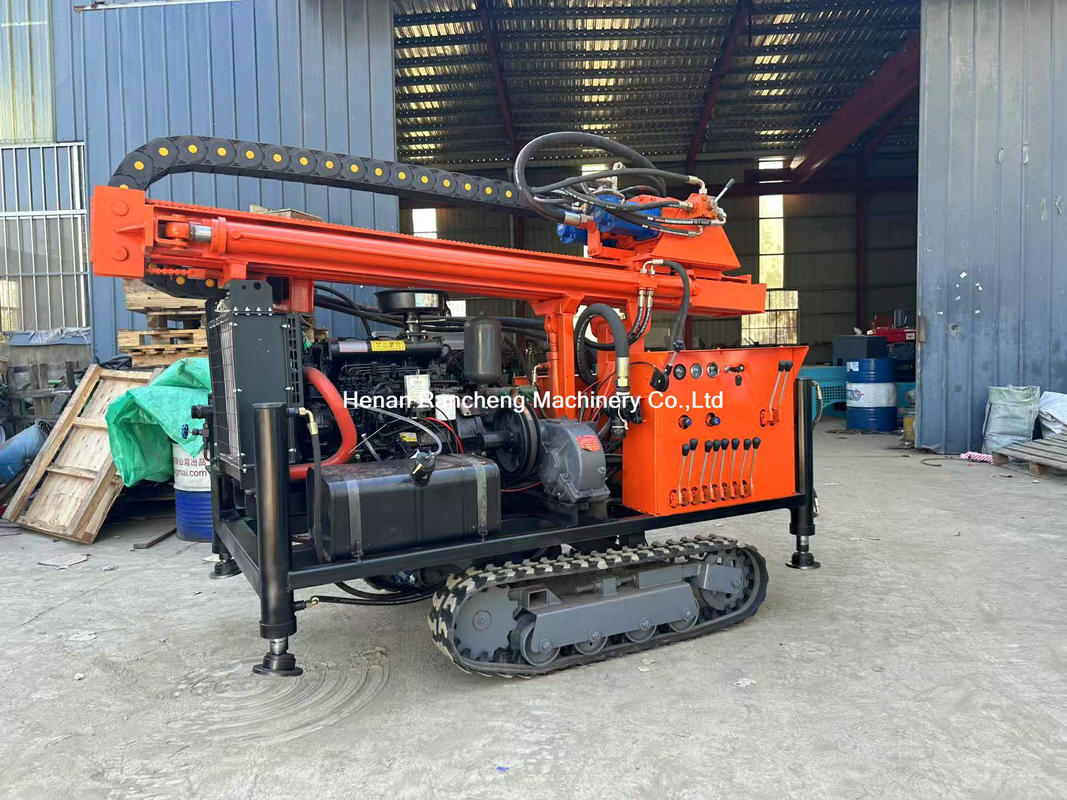

Crawler Mounted Type RCS200C Drilling Rig Drill Depth 200m Hydraulic Drill System And Operation
Product Description
The RCS200C small water well drill is a trailer-mounted small water well drill rig featuring advanced hydraulic technology. It features a top-mounted engine powered by a mud pump and air compressor.
This fully hydraulic, compact drill rig is suitable for deep rotary drilling, reaching a maximum depth of 200 meters. It is lightweight, highly efficient, and versatile. It can perform rotary drilling using air, foam, or mud, depending on the application.
| Model | RCS200C |
| Geology drilled | All kinds |
| Drill depth | 200 m |
| Drilling Diameter | 90 -300mm |
| Drill system and operation | Hydraulic |
| For rock | 6-20F |
| Air consumption | 17-35m³/min |
| Air pressure | 1.7-3.0Mpa |
| Rotary head | |
| Rotation Torque | 4000-5000N.m |
| Rotation speed | 80-200rpm |
| Lifting capacity | 14000KGS |
| Pull down capacity | 4000KGS |
| DRILL PIPE | |
| Drill pipe length | 2 meter |
| Drill pipe diameter | 60/76/89 mm |
| MUD PUMP | |
| Flow capacity | 160 liter/min |
| working pressure | 1.3MPA |
| DIMENSIONS | |
| Transport size | 2300*1200*1700mm |
| Weight | 2000KGS |
| Diesel engine | |
| Power | 45KW Weifang Hengtong |
Application:
This hydraulic water well drilling machine is widely used in industrial and agriculture water project,farm irrigation well drilling ,home use well drilling ,geothermal well drilling ,inspect well and other exploration borehole drilling
