RCF400C Full Hydraulic Water Well Drilling Rig Crawler-type 400 Meter Water Well Drilling Rig
Machine Introduction
The RCF400C deepwater well drilling rig is a product independently developed by our company. This next-generation down-the-hole hammer, combined with greater pneumatic power, plays a significant role in increasing drilling speed.
Made of high-quality materials and featuring a sleek and compact design, our drilling rigs offer increased efficiency, reduced failure rates, increased cost-effectiveness, and a superior overall cost-effectiveness. Our water well drilling rigs have received substantial market recognition and positive feedback from our customers.
Technical Parameters
| Bore diameter(Hammer) | 140-350mm |
| Bore depth | 400m |
| Air consumption | 17-36m³/min |
| Air pressure | 1.7-3.5Mpa |
| Pipe diameter | 89mm/102mm |
| Pipe length | 1.5m/2m/3m/6m |
| Lifting force | 22T |
| Lifting speed | 3m/min |
| feeding speed | 0.5-5m/min |
| Fast lifting speed | 20m/min |
| Fast feeding speed | 40m/min |
| Max torque of rotary | 6200-9000Nm |
| Rotary speed | 66-135r/min |
| Hoist lifting capacity | 2T |
| Mud Pump flow | 450L/min (option) |
| High hydraulic leg | 1.4m |
| Feeding efficiency | 15-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 6000×2100×2550mm |
| Weight | 9200Kg |
| Diesel engine | 92KW Yuchai engine |
| Drilling way | Air compressor drilling or mud pump drilling |
Application
our water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.

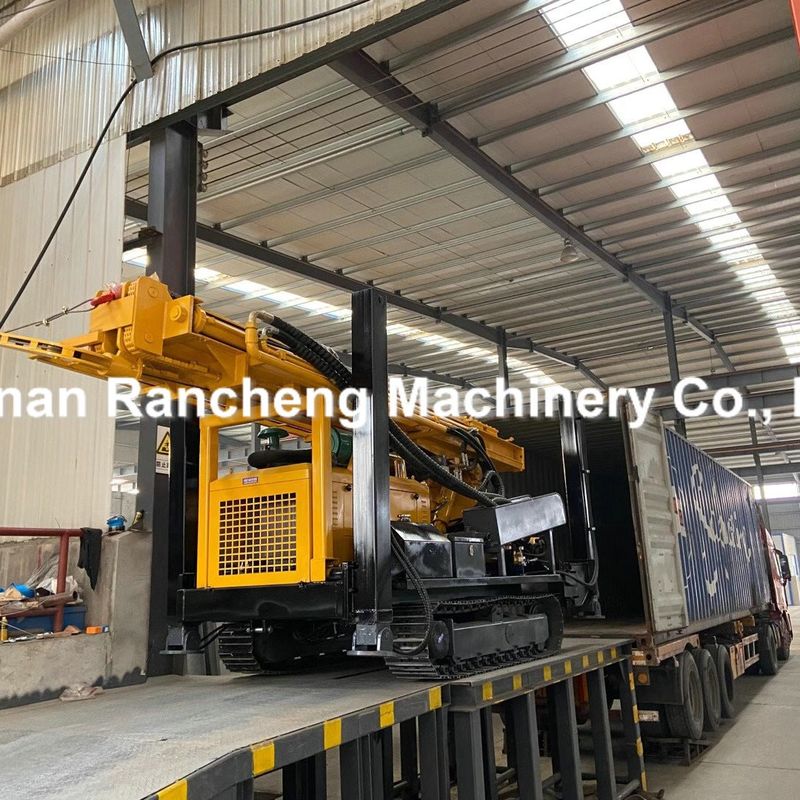

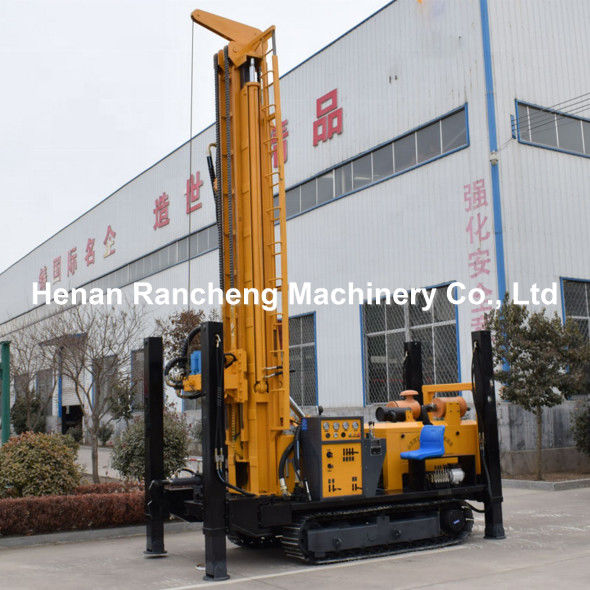

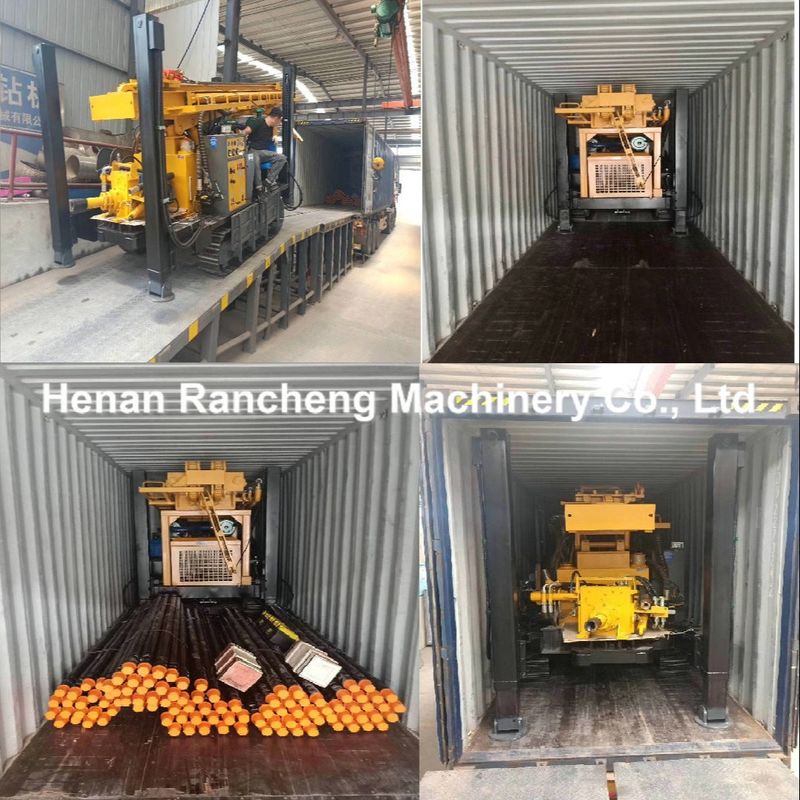

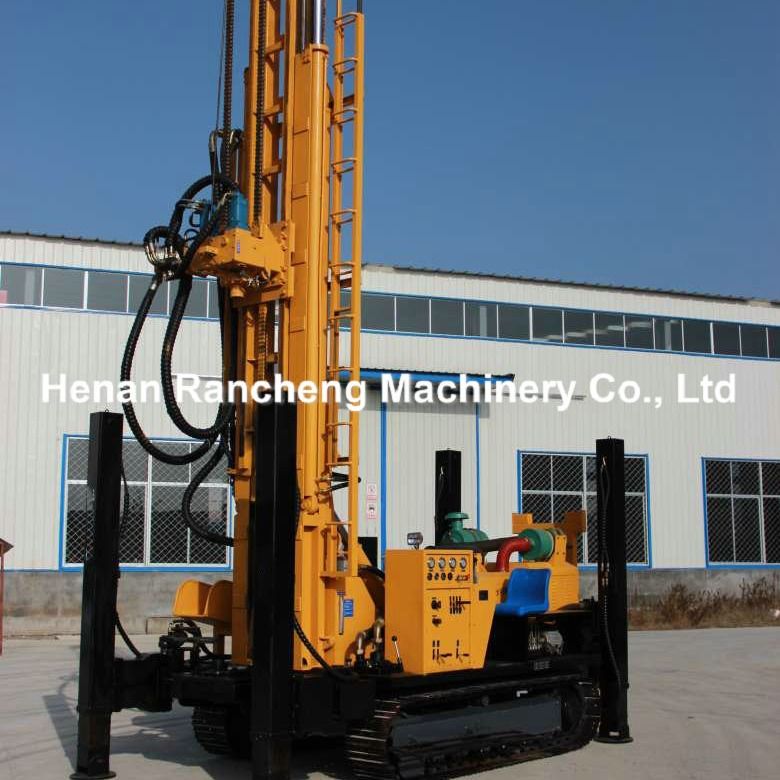

Machine Pictures
