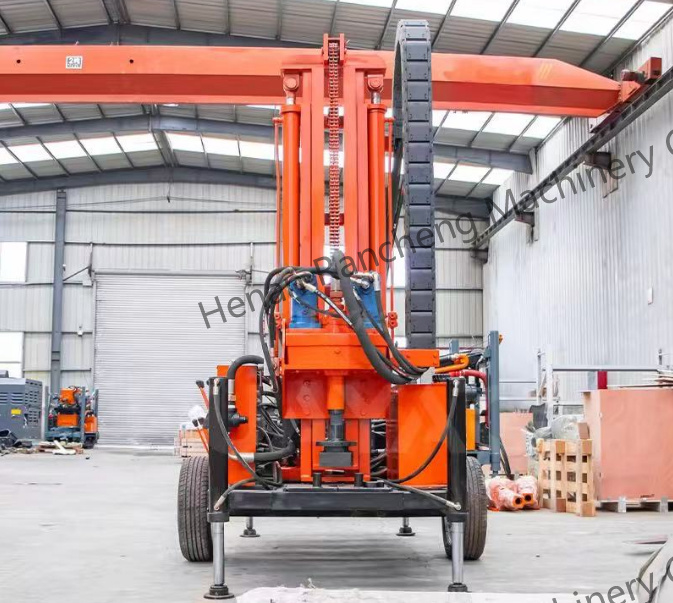

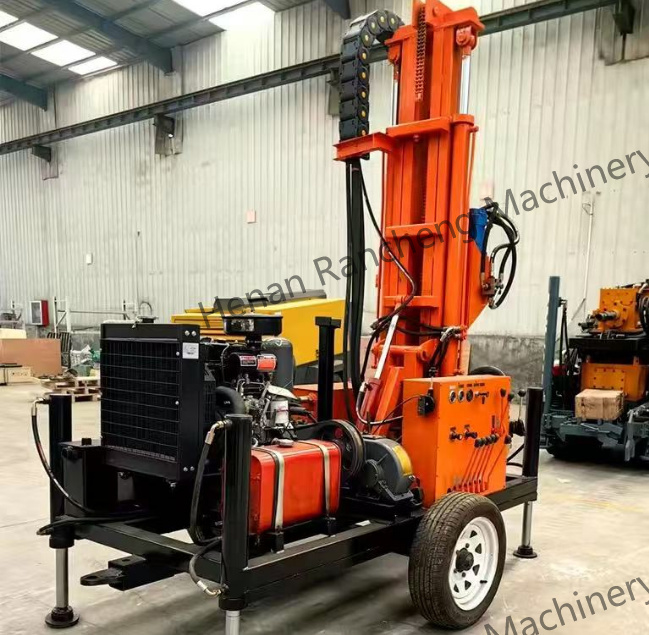

The RCS200W small water well drilling rig is mounted on a trailer. It uses advanced hydraulic technology, a top-mounted drive, and is powered by a mud pump and air compressor.
This compact, fully hydraulic drilling rig is designed for downhole and rotary drilling up to 200 meters. Lightweight, powerful and versatile, it uses air, foam or mud for rotation and drilling, depending on the conditions.
| Model | RCS200W |
| Geology drilled | All kinds |
| Drill depth | 200 m |
| Drilling Diameter | 90 -300mm |
| Drill system and operation | Hydraulic |
| For rock | 6-20F |
| Air consumption | 17-35m³/min |
| Air pressure | 1.7-3.0Mpa |
| Rotary head | |
| Rotation Torque | 4000-5000N.m |
| Rotation speed | 80-200rpm |
| Lifting capacity | 14000KGS |
| Pull down capacity | 4000KGS |
| DRILL PIPE | |
| Drill pipe length | 2 meter |
| Drill pipe diameter | 60/76/89 mm |
| MUD PUMP | |
| Flow capacity | 160 liter/min |
| working pressure | 1.3MPA |
| DIMENSIONS | |
| Transport size | 2300*1200*1700mm |
| Weight | 2300KGS |
| Diesel engine | |
| Power | 45KW Weifang Hengtong |
Application:
This hydraulic water well drilling machine is widely used in industrial and agriculture water project,farm irrigation well drilling ,home use well drilling ,geothermal well drilling ,inspect well and other exploration borehole drilling.
