Drill Depth 40-45m Hydraulic DTH Drilling Rig Both Rotary And Hammer Drilling
Machine Introduction
The 100YA2 fully hydraulic down-the-hole drill utilizes the latest hydraulic technology, resulting in low air consumption and high torque. Its compact design is mounted on slide rails, ensuring stability during drilling.
This down-the-hole drill utilizes a new dual-motor turret as its rotation mechanism, enabling it to maintain high torque while working in conjunction with the air compressor during ground blasting operations, enabling large-diameter drilling.
Machine Specifications
| Bore diameter(mm) | 90—140 |
| Bore depth(m) | 30 |
| Walk speed(km/h) | 2 |
| Once promotion(mm) | 2000 |
| Grade ability (°) | 30 |
| Air pressure(Mpa) | 0.7—1.4 |
| Chassis ground clearance(mm) | 260 |
| Air consumption(m³/min) | 7—15 |
| Skid pitch(°) | Up and down100 |
| Sliding tilt swing (°) | left35,right10 |
| For rock(F) | 6—20 |
| Skid compensation(mm) | 900 |
| Dimension(L*W*H)(mm) | 4300*2130*2160 |
| weight(Kg) | 2900 |
| Diesel engine power | 33KW Yuchai |
Machine Advantages
1. This drill's hydraulic motor offers low rpm and high torque.
2. The drill uses hydraulic cylinder propulsion for stable performance.
3. A two-stage air filter ensures air quality and extends the life of the diesel engine.
4. Automatic monitoring of hydraulic and propulsion pressures.
5. The drill is equipped with a spotlight for convenient nighttime operation and maintenance.
6. This down-the-hole drill rig features maneuverability, strong slope-climbing capability, and ease of drilling and repositioning, making it ideal for operations in harsh conditions.

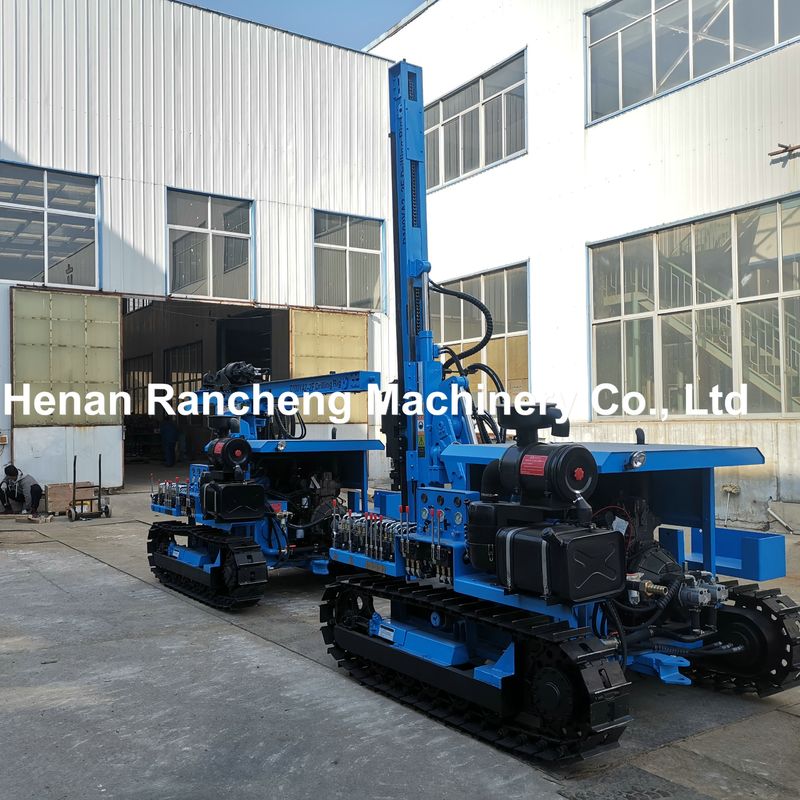

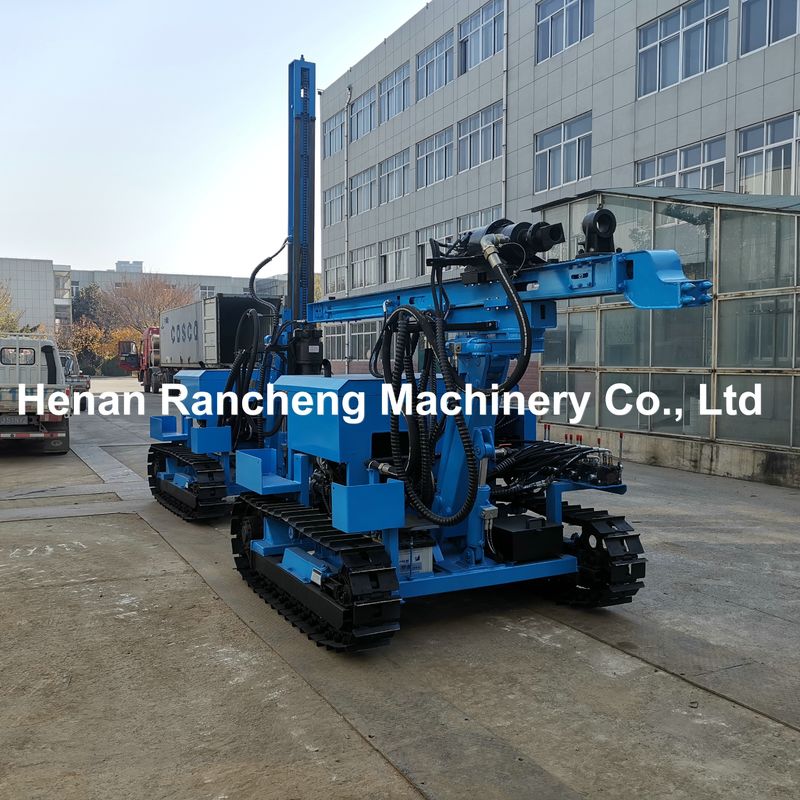

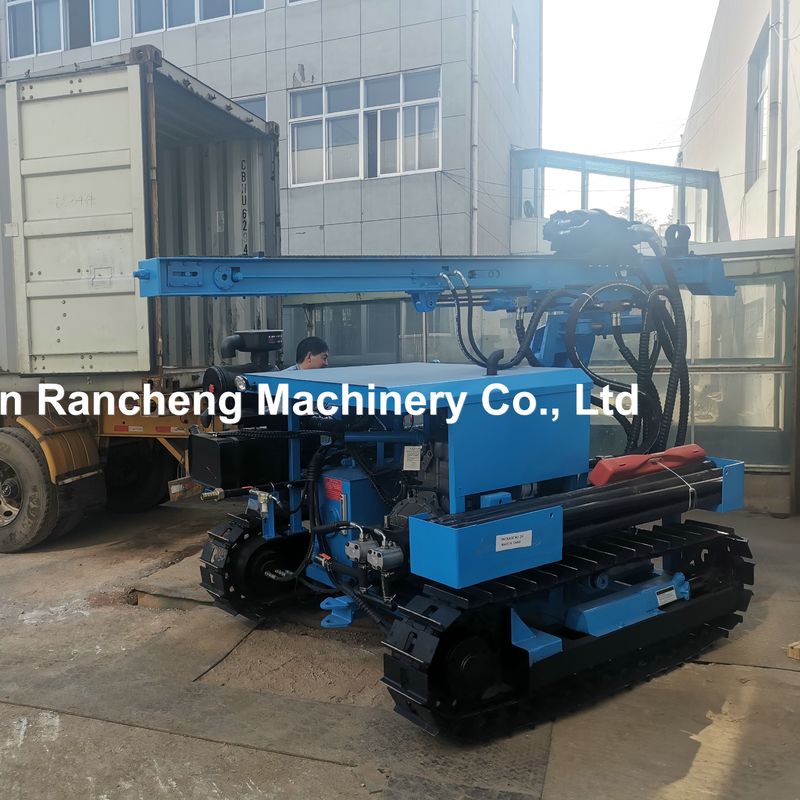

Machine Pictures
