Nguồn gốc:
Trung Quốc
Hàng hiệu:
RanCheng
Chứng nhận:
CE, ISO 9001:2000
Số mô hình:
RCQ-1
Băng hình
Băng hình

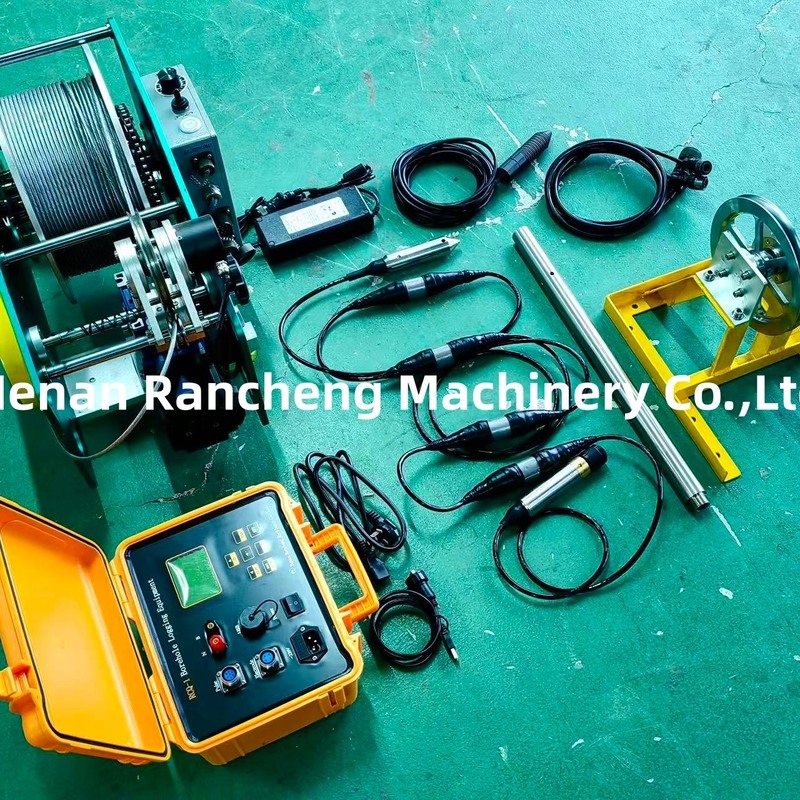

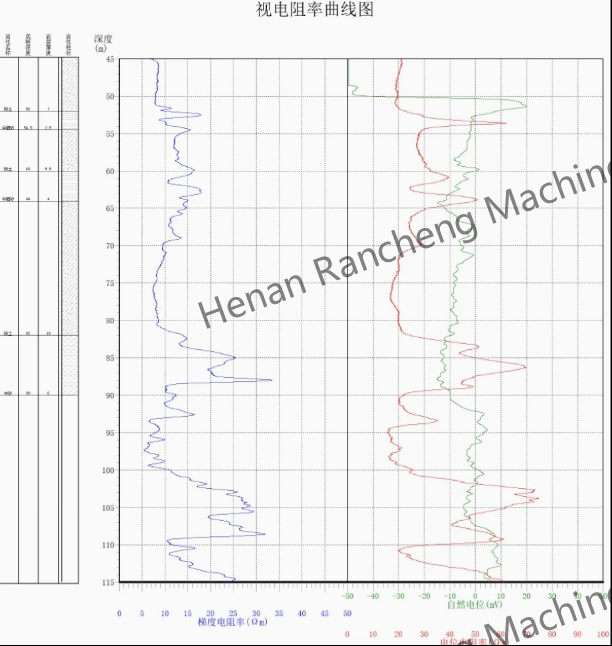

The RCQ-1 resistivity logging system is a geophysical tool specifically designed to measure apparent resistivity in boreholes. It employs wired communication, connecting the probe to a Kevlar cable and then lowering it into the borehole using an electric winch to perform measurements. The entire process, from equipment installation and operation to software management, is exceptionally convenient and efficient. Furthermore, the system is equipped with two voltage channels, allowing for simultaneous recording of two curves, significantly improving logging efficiency.
Technical Specifications
| No. | Item | Parameter |
| 1 | External Power Supply | AC 220V ± 20%, 50Hz, 20W |
| 2 | Working Condition | Temperature: -20 ºC ~ +40 ºC, humidity ≤ 90% |
| 3 | AB Power Supply | 6~60V, 0~200mA, AC square wave |
| 4 | Applicable Electrode System | A1.6M 0.4N |
| 5 | Apparent Resistivity Measurement Range | 1-2000Ωm |
| 6 | Apparent Resistivity Measurement Accuracy | 1% (scale) |
| 7 | Natural Potential Measurement Range | ±1200mv |
| 8 | Natural Potential Measurement Accuracy | 1% |
| 9 | Signal Output | USB interface |
| 10 | Depth Measurement | 0 ~ 9999.99 meters |
| 11 | Depth Measurement Accuracy | better than 0.1% |
| 12 | Speed Measurement Range | 0 ~ 9999 meters / hour |
| 13 | Speed Measurement Accuracy | better than 5% |
