Name: RCF400C Is A Professional 400-Meter Multi-Functional Deep Water Well Drilling Rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF400C
Availability: InStock

Nhà > các sản phẩm > Máy khoan giếng nước >

RCF400C Is A Professional 400-Meter Multi-Functional Deep Water Well Drilling Rig

400-meter deep water well drilling rig

professional water well drilling machine

multi-functional deep well drilling rig

Nguồn gốc:

Trung Quốc

Hàng hiệu:

RanCheng

Chứng nhận:

CE, ISO 9001:2000

Số mô hình:

RCF400C

Liên hệ với chúng tôi

Lời yêu cầu Một câu trích dẫn

Chi tiết sản phẩm

Đường kính ống:

89mm/102mm

Đường kính lỗ khoan (búa):

140-350mm

Độ sâu khoan:

400m

Tăng khả năng nâng:

Mô-men xoắn cực đại của quay:

6200-9000Nm

Động cơ Diesel:

Động cơ Yuchai 92KW

Làm nổi bật:

400-meter deep water well drilling rig

professional water well drilling machine

multi-functional deep well drilling rig

Điều khoản thanh toán và vận chuyển

Số lượng đặt hàng tối thiểu

Giá bán

có thể đàm phán

chi tiết đóng gói

Nó có thể được vận chuyển bằng một container 20"

Thời gian giao hàng

10-15 ngày làm việc

Điều khoản thanh toán

T/T, Công Đoàn Phương Tây

Khả năng cung cấp

100 bộ mỗi tháng

Sản phẩm liên quan

Băng hình

Xi lanh khoan thủy lực nhỏ, độ sâu 160m, máy khoan giếng nước gắn bánh xích

Nhận được giá tốt nhất

Băng hình

Máy khoan giếng nước sâu 1000m 105mm - 800mm Dia 179KW Deep Well Drilling Rig

Nhận được giá tốt nhất

Băng hình

Thiết bị khoan giếng nước khí thủy lực 500m Độ sâu khoan 118KW Động cơ

Nhận được giá tốt nhất

Băng hình

Thiết bị khoan giếng nước sâu 800m 153KW Động cơ 140mm - 500mm Diameter

Nhận được giá tốt nhất

Liên hệ với chúng tôi

Liên hệ ngay bây giờ

Mô tả sản phẩm

RCF400C Is A Professional 400-Meter Multi-Functional Deep Water Well Drilling Rig

The RCF400C deep-water well drilling rig is a new generation of drilling equipment independently developed by our company. The machine is equipped with a high-power down-the-hole (DTH) pneumatic power unit, integrated with an advanced hydraulic system, offering such advantages as rapid drilling speeds, low energy consumption, high rotational torque, and convenient hole deviation correction.

Constructed from high-quality raw materials, the unit features a compact and streamlined body structure; it operates with exceptional stability, exhibits a low failure rate, and offers outstanding durability, cost-effectiveness, and overall value. This model is widely applicable to various drilling projects, including resource exploration, hydrogeological drilling, the construction of civil drinking water wells, and agricultural irrigation systems. Thanks to its superior performance capabilities, the equipment has successfully passed rigorous field testing and has garnered unanimous recognition and acclaim from clients worldwide.

Technical Specifications

Parameter	Specification
Bore Diameter (Hammer)	140-350mm
Bore Depth	400m
Air Consumption	17-36m³/min
Air Pressure	1.7-3.5Mpa
Pipe Diameter	89mm/102mm
Pipe Length	1.5m/2m/3m/6m
Lifting Force	22T
Lifting Speed	3m/min
Feeding Speed	0.5-5m/min
Fast Lifting Speed	20m/min
Fast Feeding Speed	40m/min
Max Torque of Rotary	6200-9000Nm
Rotary Speed	66-135r/min
Hoist Lifting Capacity	2T
Mud Pump Flow	450L/min (option)
High Hydraulic Leg	1.4m
Feeding Efficiency	15-35m/h
Travel Speed	2.5Km/h
Climb Ability	30°
Dimension (L×W×H)	6000×2100×2550mm
Weight	9200Kg
Diesel Engine	92KW Yuchai Engine
Drilling Method	Air Compressor Drilling or Mud Pump Drilling

Key Features & Benefits

1. Fully Hydraulic, Flexible Control: Efficient and Hassle-Free Operation
The machine features a fully hydraulic top-drive design, allowing for independent adjustment of rotation speed, torque, and axial pressure. Drill pipe assembly and disassembly are simple, minimizing auxiliary operation time. Compatible with a wide range of drilling techniques, it delivers rapid drilling speeds and high construction efficiency.
2. High Adaptability, Lower Construction Costs
It supports various drilling methods—including DTH (Down-the-Hole), reverse circulation, and core drilling—and is compatible with a wide array of accessories. Equipped with crawler tracks and extended outriggers, it navigates muddy terrain smoothly and can self-load and unload without the need for a crane. The DTH drilling process lowers the cost per meter of drilling, offering exceptional value for money.
3. Premium Configuration: Stable and Durable Performance
Core hydraulic components are sourced from renowned brands, while the machine body is constructed from high-strength steel. It supports both positive and negative axial pressure adjustment, ensuring optimal impact efficiency at all times. Furthermore, it offers a choice between crawler-mounted and truck-mounted chassis options to suit diverse construction environments.

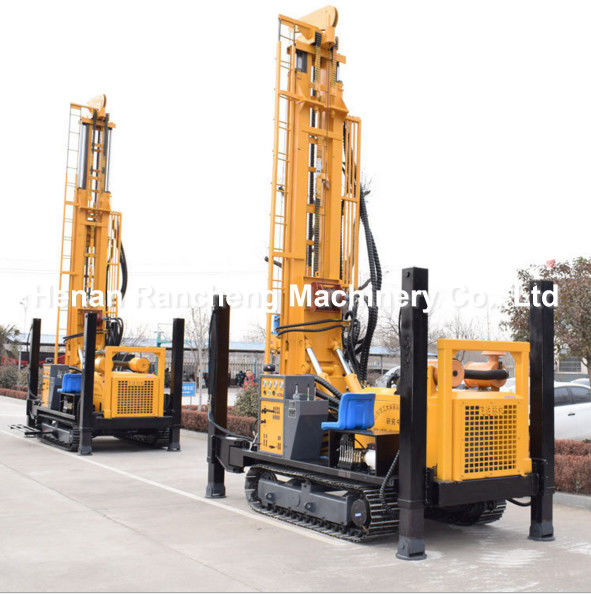

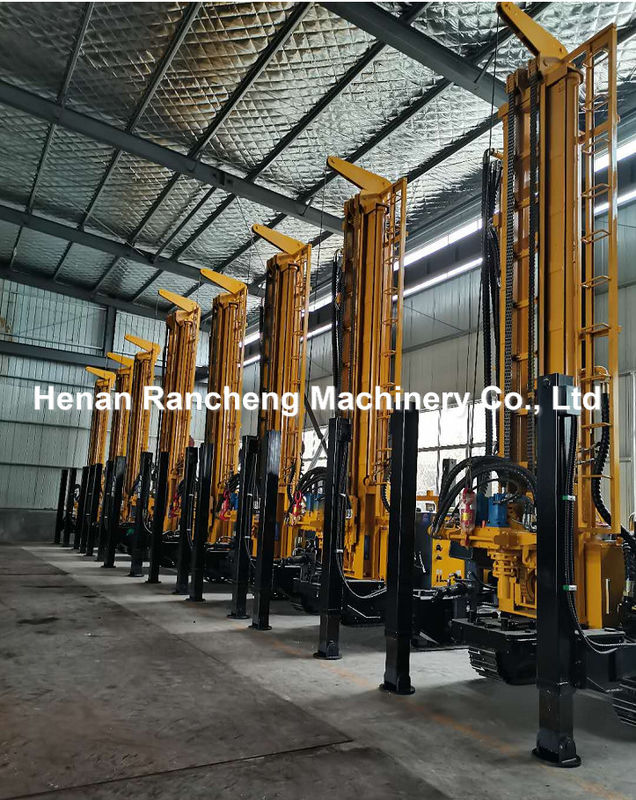

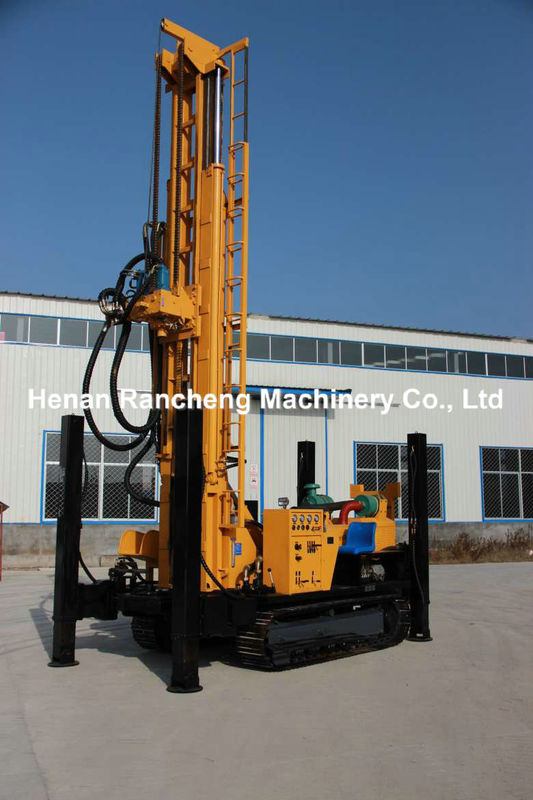

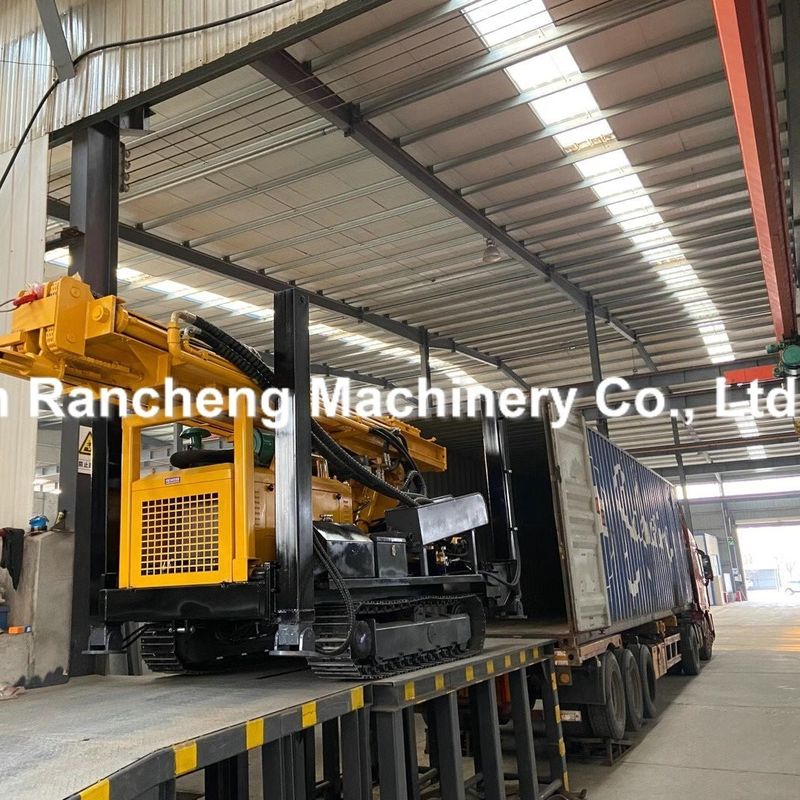

Product Images
